Kyosho Electric Starter Pack Plus (TX, RX, ESC + Servo) [82145]

Item No.: KYO-82145

Please login or register to view pricing.

Special starter pack supports beginners to R/C electric models and includes receiver with built-in gyro!

Including the key R/C components in a single set, this starter pack makes it easier and cost-effective for newcomers to R/C cars. The 2.4GHz transmitter and receiver automatically manage frequency bands across multiple cars and combine with an ESC and steering servo to deliver optimal control and powerful running performance. Control stability is further enhanced with the KSS (Kyosho Stability System) that detects imbalances in vehicle posture and automatically corrects with steering and throttle to support beginner drivers in maintaining stable maneuverability. Only battery for the chassis, 4 x AA size batteries for the transmitter and a brushed motor are required to get up and running! Get your R/C experience off to a great start at an affordable price with EP Starter Pack Plus!

[Transmitter/KT-231P+] - The 3-Channel transmitter operates on 2.4GHz and requires no frequency band control. Non-stepped (continuous) adjustment provides precision setting of ˜Throttle Trim' to ensure the car doesn't move unnecessarily, ˜Steering Trim' to adjust the car's straight line running, ˜Throttle Endpoint Adjust' to set the amount of movement on forward and brake input and ˜Steering D/R Adjuster' to adjust the steering control angle. Requires 4 x AA size alkaline batteries.

The KRG-331 receiver with built-in gyro features the KSS (Kyosho Stability System), which straightens driving lines when steering control is affected on slippery or uneven roads and prevents spinouts during cornering, ultimately realizing faster lap times. The traction correction function also allows you to exit through corners at higher speed. Since the user can adjust the correction rate to their preference, settings can be made according to the road surface conditions and the type of vehicle.

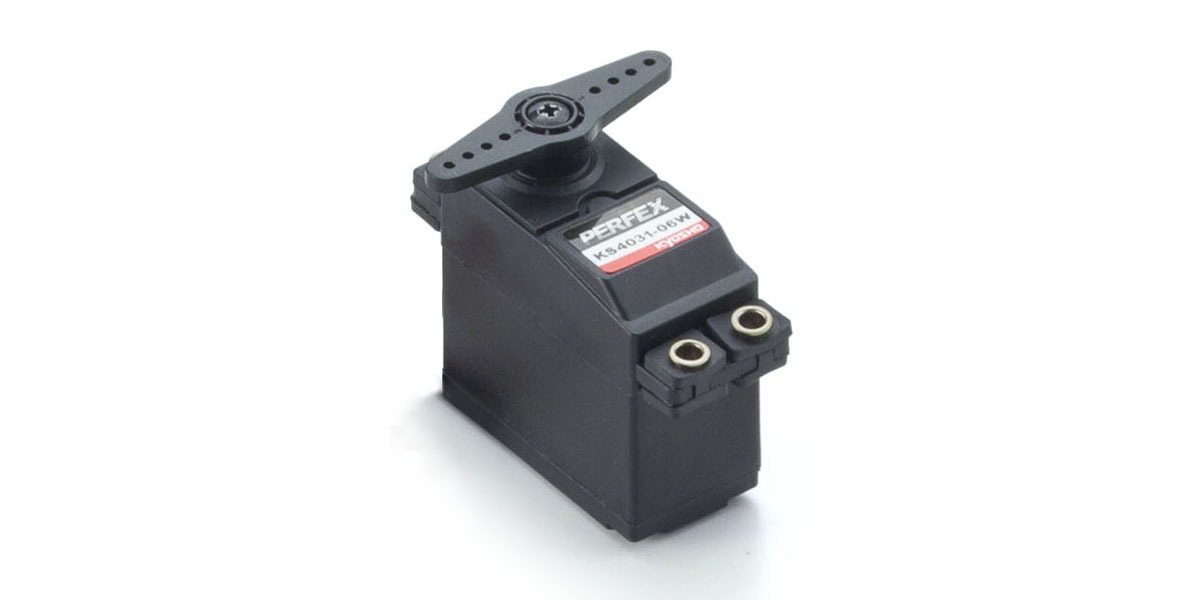

The KS4081-06W Servo controls the steering through the front wheels. This waterproof servo delivers fast response speed from the transmitter control signal for sharp steering characteristics, and holds its line under feedback from the road surface. (Speed : 0.15sec/60°, Torque : 6.0kg・cm).

Includes battery conversion connector that connects standard connector (T connector). (Battery connector for ESC is super plug type)

Techincal Data:

  • Channels 3
  • Frequency 2.4GHz
  • Modulation System FHSS telemetry system
  • Size Transmitter W105mm x L175mm x H230mm
  • Receiver W37.9mm x L22.5mm x H13mm
  • Weight Transmitter 390g
  • Receiver 5.7g
  • ESC Power Source 2-3S Li-Po/5-9cell Ni-Mh
  • ESC Continuous current 60A
  • Range 100m



Contents:

  • KT-231P+ transmitter
  • KRG-331 receiver
  • KS4031-06W servo

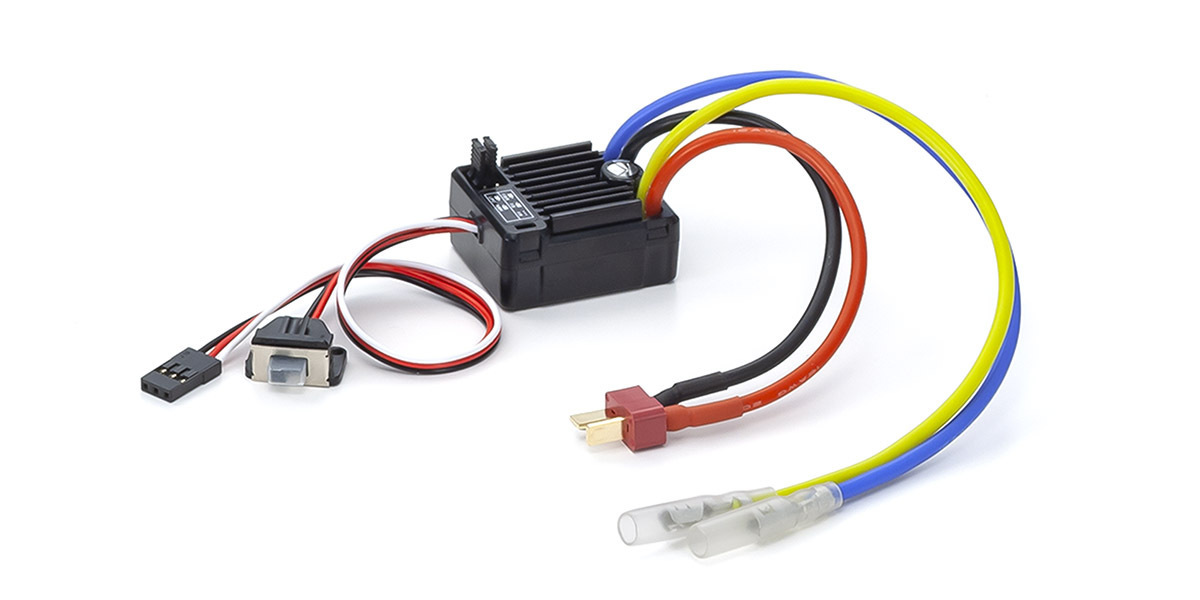

  • SPEED HOUSE 60A ESC for WP brush
  • Battery conversion connector
  • Binding connector
  • Antenna pipe
  • Double-sided tape
  • Grommet
  • Eyelet
  • I-shaped servo horn
  • Servo horn fixing screw
  • manual



Required to Run - Sold Separately:

  • Alkaline batteries
  • + Driver
  • Car kit
  • Battery
  • Battery charger

(KYO-82145)

SKU KYO-82145
Barcode # 4548565394876
Brand Kyosho
