PLEASE NOTE: This Product is designed for fresh water running. Running this product in salt water may cause damage and lead to component failures.

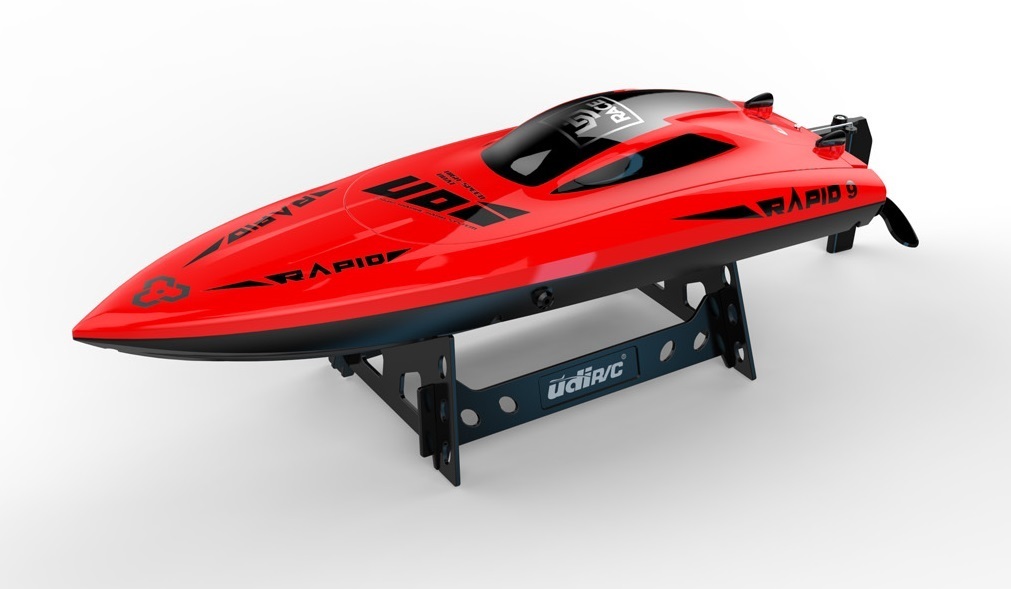

RAPID UDI009

The RAPID is engineered to be fast, reliable, and easy to drive. The installed water cooling system for the motor helps keeps the RAPID cool for longer run times and all day fun. With the waterproof, Electronic Speed Control, waterproof high-torque servo, and the watertight receiver box, the lakeside fun doesn’t end early because of wet radio gear. The RAPID is always ready to make waves with its stable 16-inch deep-V hull, a stylish hatch, fresh new graphics and powerful water-cooled motor. The steerable outdrive with adjustable trim deliver precise control and high-performance tuning options.

Installed Water Cooling System

The installed water cooling system for the motor helps keeps the RAPID cool for longer run times and all day fun.

Receiver & ESC integrated box

The sealed waterproof design keeps the Receiver & ESC dry run-after-run.The electronic speed control provides smooth, fully proportional control for precise dockside maneuvers. Makes it possible to experience all the extreme power, speed, and acceleration that was engineered into UDIRC models by making it much easier to control the boat in water conditions. Punch it off the line and Receiver goes to work sensing the boat’s direction and making steering corrections to provide straight-ahead full throttle acceleration without loss of control. Also works when turning, first making intuitive corrections to maintain the vehicle’s line, then hammer the throttle earlier in the turn for much faster exit speeds. UDIRC engineers developed superior tuning algorithms that run on high-speed, precision electronic components to create a system that works invisibly, in the background, without ever limiting throttle. Can be fine-tuned for different conditions by simply adjusting the multi-function knob on the transmitter.

Radio System

Switch on the power and go! That’s all there is to it with the UA13 2.4GHz radio system. There are no frequencies to manage, so the focus is on having fun. Race multiple boats side by side without interference. The UA13’s advanced programming provides long-range control with smooth, glitch-free performance. Also the double protection of Low battery alarm and Out of range alarm, allows you to grasp sailing status of the boat, to avoid lost and get rid of concerns.

Modern Reinforced Hull

The RAPID clean, modern hull design is built up in layers for maximum rigidity where it matters most, the transom and ride pad. Lightweight yet incredibly strong, RAPID’s ABS hull is designed to withstand the stress of high-voltage horsepower. The transom bulkhead also incorporates bosses for the trim tabs, turn fins, rudder support, and drive strut, eliminating the need for additional hardware inside the hull. In the boat’s bow, can be installed with rubber bumpers, adding security as it further stiffens the hull.

Boat Specs

Model No.: UDI009
Age Group: 14+ years old
Playing Time: about 8 minutes
Speed: 25 to 30km/h
Hull Type: Deep-V
Dead Rise Angle: 30 degrees
Overall Length: 424mm
Overall Height: 119mm
Beam (width): 114mm
Weight: 565 g
Speed Control Type: water-cooled
Input Voltage: LiPo cells (7.4 V DC)

Motor Specs

Type: Strong magnetic motor, water-cooled
Weight: 91g
Length: 54mm
Diameter: 27.5mm
Connector Type: Dual Wire

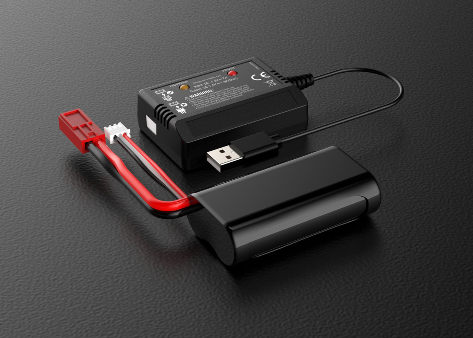

Battery

Battery Type: lithium battery
Capacity: 1500mAh
Voltage: 7.4 V
Charging Time: about 200 minutes

Transmitter Specs

Operating frequency: 2.4 GHz
Remote control distance: about 120m
Battery: 4×1.5V, AA battery

Features List

Waterproof, Watercooled system, Sleek design, Navigation rudder, High/Low Speed Mode, Low battery alarm, Out of range alarm, Self-Righting Hull Design, Forward, Backward, Turn left/right
